RPG游戏

RPG冒险游戏（单机版）

前言：

这是一个基于Java语言的RPG冒险小游戏，使用maven构建管理，javafx进行绘图。玩家可以移动探索地图，自由切换皮肤，攻击怪物获得金币，拾取道具补充血量或拾取武器攻击敌人。玩家移动至相应位置可触发气泡提示，也可发送语音气泡显示在游戏角色头顶，增强玩家与游戏的互动性，提高趣味性。

此游戏还有联机版，网络多人作战，玩家可以通过语音输入与其它玩家进行互动。

以下是几张游戏截屏：

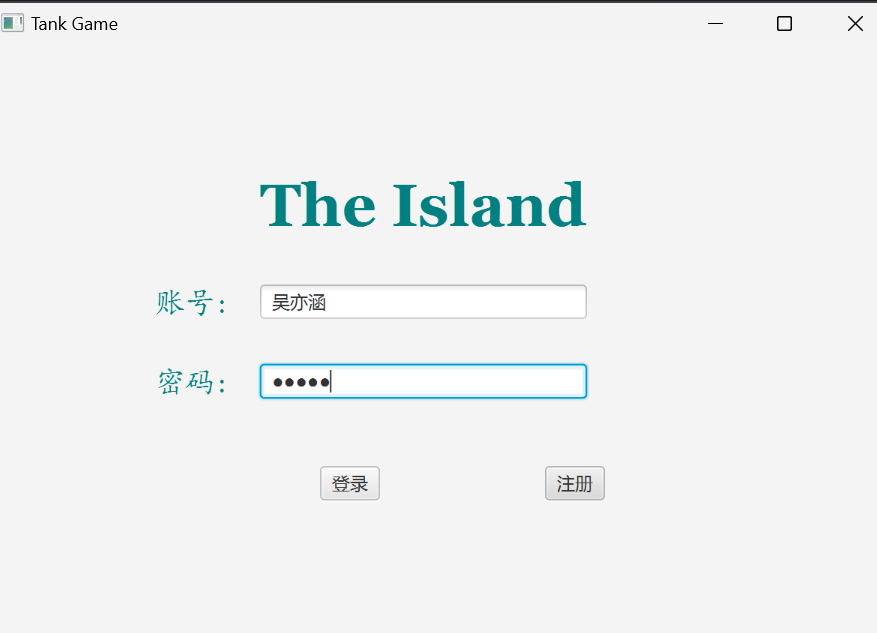

登录/注册界面：

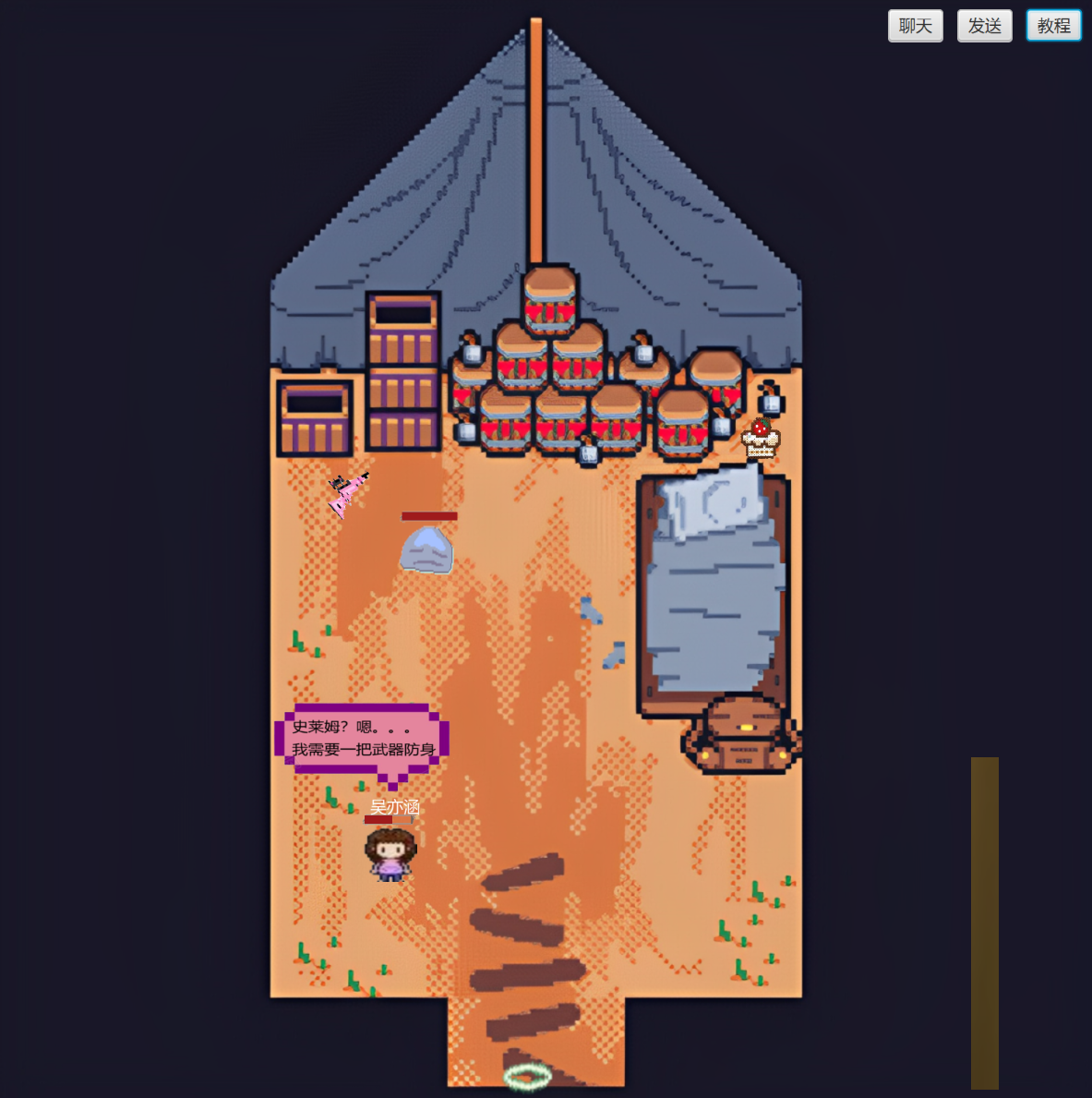

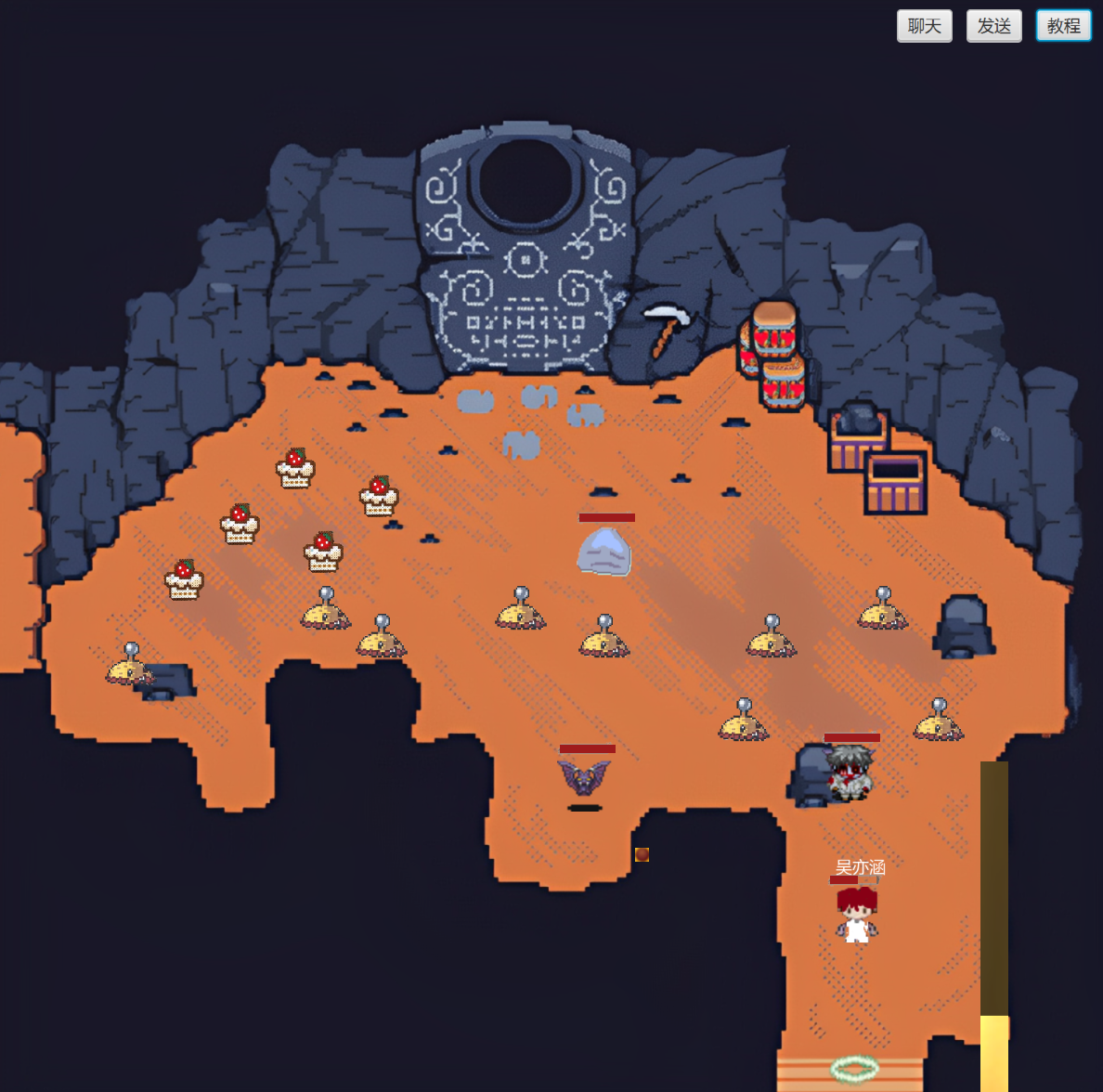

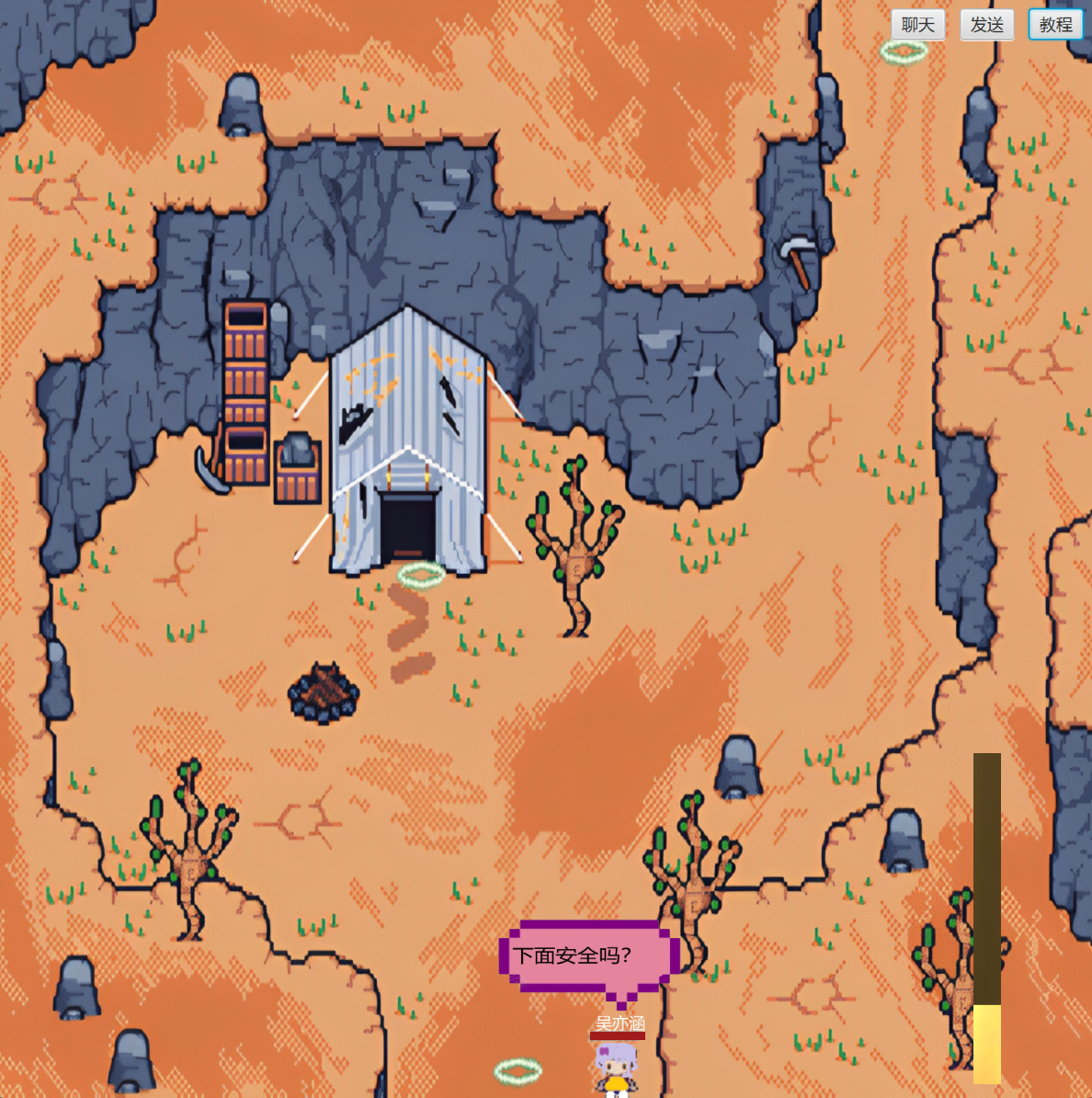

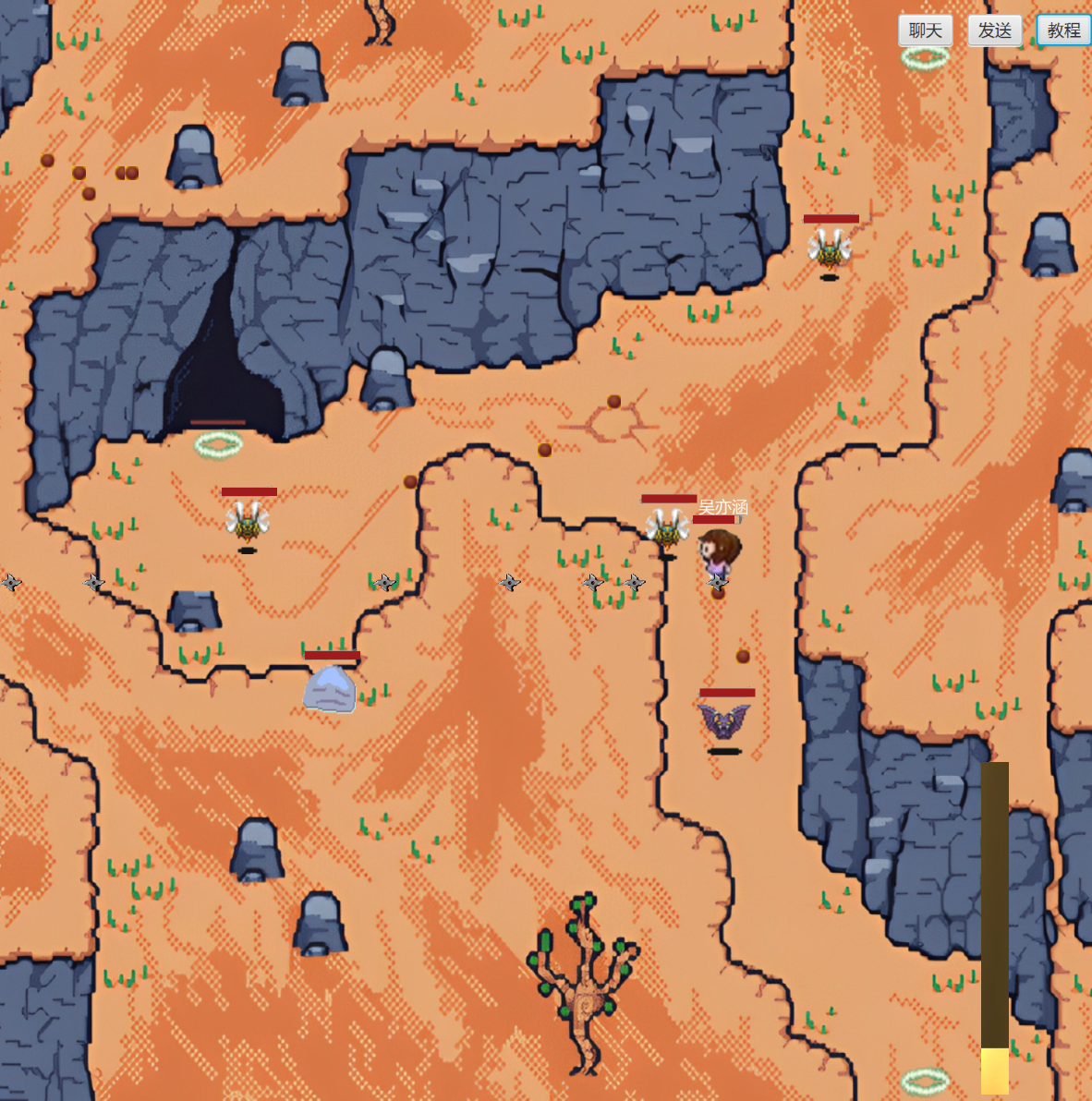

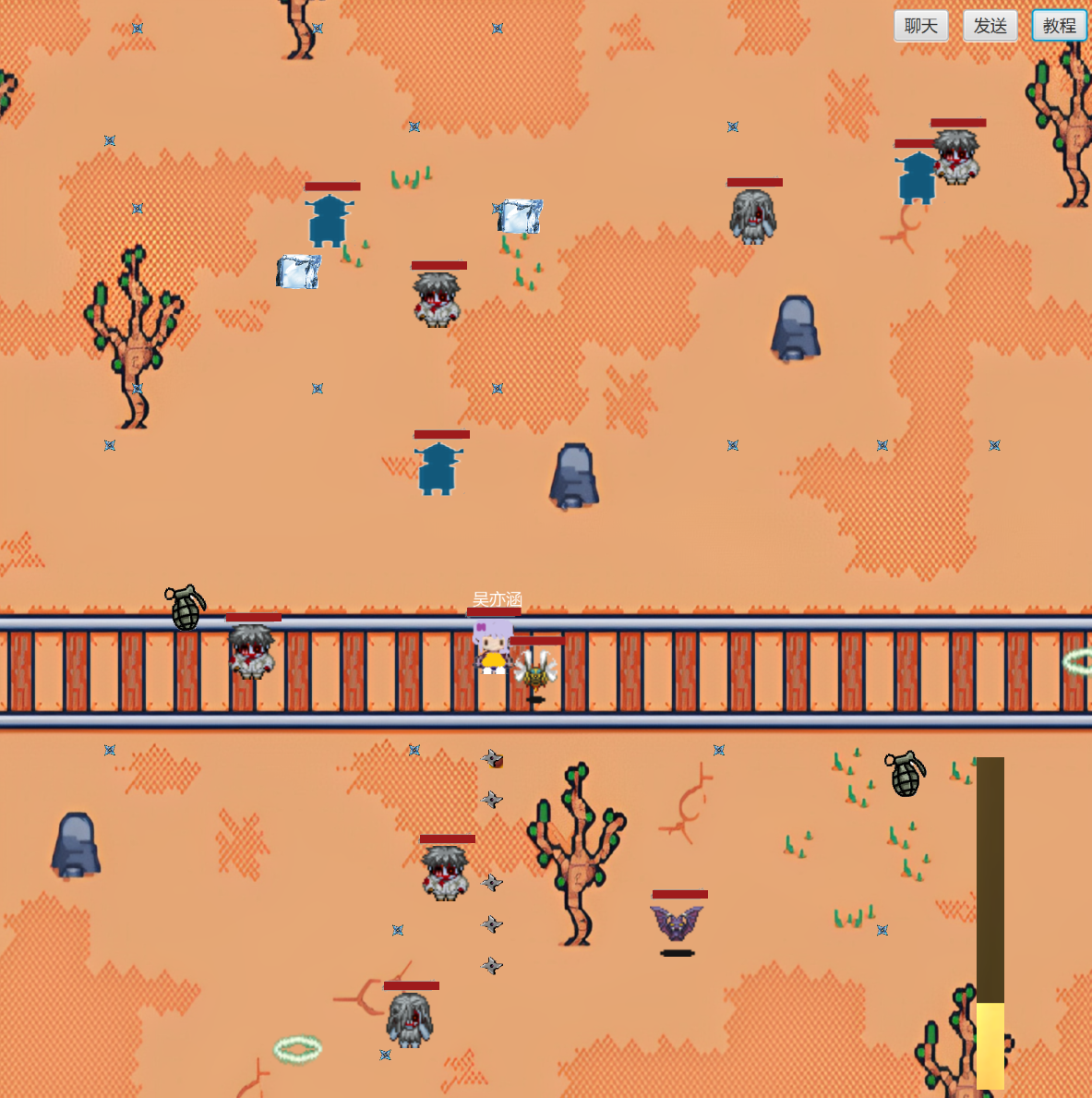

游戏场景：

游戏逻辑设计：

1. 玩家可通过WASD键进行八向移动，J键发射飞镖，C键进行换肤
2. 玩家可通过移动拾取道具或武器，进行补充血量或攻击敌人
3. 玩家击败敌人后可获得金币
4. 玩家移动至地图传送口时可进行场景切换，前提是场景任务已完成
5. 角色与地图、角色与角色间有碰撞检测
6. 某些敌人具有追踪功能，当玩家靠近至一定范围内时会自发进行追踪

类设计：

GamePanel面板类：
游戏绘制主面板 也是启动类
启动后会先跳转至登录/注册页面 信息验证成功便进入游戏界面
初始化地图、玩家角色、敌人、道具、特效，并不断重绘（对象位置随时改变）
进行键盘监听，监听玩家操控、切换皮肤、发送语音气泡、查看教程等行为
布置当前场景任务，进行场景切换（杀完敌人才可以切换场景 道具不捡就会消失）

WordMap地图类：
读取地图文件数据 设置空气墙 设置怪物道具出生点等

Role角色类：
hero玩家类与enemy敌人类的父类
拥有移动线程，随时与空气墙的碰撞检测、角色间的碰撞检测逻辑

Hero玩家类：
继承Role角色类
根据角色朝向切换图像、具有切换角色皮肤功能
重写移动撞击线程，根据角色移动至传送口的位置与朝向切换游戏场景
具有发射子弹shoot逻辑

Enemy敌人类：
具有不同类型type，不同的敌人类型，主要分为近战型与远战型（发射子弹）
某些敌人具有追踪功能，当主角靠近至一定范围内即展开追踪

Arm道具类：
同样有自己的线程，有不同类型的道具或武器，可以回血、增强攻击力、伤害玩家自身等

Bomb炸弹特效类：
当道具中的炸弹被触发时，进行爆炸特效展示

Shot子弹类：
玩家与远战敌人所发射的子弹，自己拥有移动线程
子弹具有“生命”，超出界面范围或击中对手后则“死亡”，子弹消失

部分代码展示：

//游戏地图类

public class WordMap {
    //游戏面板对象(获取画笔)
    private GamePanel gp;
    //当前场景
    private int nowScene;
    //空气墙集合
    public static int[][] airWall;
    //空气墙地图
    private File map = map1;
    //空气墙文件集合
    private static File map1 = new File("src/main/java/org/example/wordMaps/map1.txt");
    private static File map2 = new File("src/main/java/org/example/wordMaps/map2.txt");
    private static File map3 = new File("src/main/java/org/example/wordMaps/map3.txt");
    private static File map4 = new File("src/main/java/org/example/wordMaps/map4.txt");
    private static File map5 = new File("src/main/java/org/example/wordMaps/map5.txt");
    private static File map6 = new File("src/main/java/org/example/wordMaps/map6.txt");
    private static File map7 = new File("src/main/java/org/example/wordMaps/map7.txt");

    public WordMap(GamePanel gp) {
        this.gp = gp;
        nowScene = 1;
        //初始读取一次地图
        try {
            readMap(40, 40, map);
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }

    //读取地图数据
    public void readMap(int rows, int cols, File map) throws Exception {
        BufferedReader br = new BufferedReader(new FileReader(map));
        String line;
        airWall = new int[40][40];
        int rowIndex = 0;
        while ((line = br.readLine()) != null && rowIndex < rows) {
            String[] values = line.split(",");
            for (int collIndex = 0; collIndex < cols; collIndex++) {
                airWall[rowIndex][collIndex] = Integer.parseInt(values[collIndex].trim());
            }
            rowIndex++;
        }
        br.close();

//        //debug
//        for (int i = 0; i < 40; i++) {
//            for (int j = 0; j < 40; j++) {
//                System.out.print(airWall[i][j]+" ");
//            }
//            System.out.println();
//        }
    }

    public void setAirWall(int[][] airWall) {
        this.airWall = airWall;
    }

    public File getMap() {
        return map;
    }

    public void setMap(int num) {
        //先切换空气墙数据地图
        switch (num){
            case 1:
                map = map1;
                nowScene = 1;
                break;
            case 2:
                map = map2;
                nowScene = 2;
                break;
            case 3:
                map = map3;
                nowScene = 3;
                break;
            case 4:
                map = map4;
                nowScene = 4;
                break;
            case 5:
                map = map5;
                nowScene = 5;
                break;
            case 6:
                map = map6;
                nowScene = 6;
                break;
            case 7:
                map = map7;
                nowScene = 7;
                break;
        }
        //再重新读取空气墙
        try {
            readMap(40,40,map);
        } catch (Exception e) {
            throw new RuntimeException(e);
        }
    }
    public int getNowScene() {
        return nowScene;
    }

    public void setNowScene(int nowScene) {
        this.nowScene = nowScene;
    }
}

//玩家类
public class Hero extends Role {
    private String name = "吴亦涵";//玩家名字
    private Image hero1 = hero11;
    private Image hero2 = hero12;
    private Image hero3 = hero13;
    private Image hero4 = hero14;
    private Image hero5 = hero15;
    private Image hero6 = hero16;
    private Image hero7 = hero17;
    private Image hero8 = hero18;
    private Image image = hero1;//默认方向
    private GamePanel gp;//面板类

    private Vector<Shot> shots = new Vector<>();//子弹集合

    public Hero(int x, int y, GamePanel gp) {
        super(x, y, gp);
        this.setBlood(500);
        this.setOriginBlood(1000);
        setAttack(0);
        setSpeed(10);
        setType(0);
        this.gp = gp;
    }

    //设置主角不同方位图片
    public void setImg(int num) {
        switch (num) {
            case 1:
                this.image = hero1;
                break;
            case 2:
                this.image = hero2;
                break;
            case 3:
                this.image = hero3;
                break;
            case 4:
                this.image = hero4;
                break;
            case 5:
                this.image = hero5;
                break;
            case 6:
                this.image = hero6;
                break;
            case 7:
                this.image = hero7;
                break;
            case 8:
                this.image = hero8;
                break;
        }
    }

    //重写判断是否撞击方法(撞击到切换口则场景切换)
    @Override
    public boolean isHit() {//此处x y已为假设运动后的坐标
        int aX = this.getX() / 20;
        int aY = this.getY() / 20;

        //检查是否在数组边界内
        if (aX < 0 || aX >= WordMap.airWall.length || aY < 0 || aY >= WordMap.airWall[0].length) {
            return true; // 假设越界等同于撞到空气墙
        }

        int num = WordMap.airWall[aY][aX];//x y 翻转?

        int sceneNum = gp.wordMap.getNowScene();
        //检查是否撞到切换口进行场景切换
        if (num == 2) {
            switch (sceneNum) {
                case 1:
                    if (state[2] == 1)
                        gp.changeScene(2);
                    break;
                case 2:
                    if (state[0] == 1) {
                        if (getX() < 400)//左边房子
                            gp.changeScene(1);
                        else gp.changeScene(3);
                    } else if (state[2] == 1 && getY() > 700) {
                        gp.changeScene(5);
                    }
                    break;
                case 3:
                    if (state[0] == 1)
                        if (getX() < 400)//左边山洞
                            gp.changeScene(4);
                        else gp.changeScene(5);
                    else if (state[2] == 1 && getY() > 700) {
                        gp.changeScene(2);
                    }
                    break;
                case 4:
                    if (state[2] == 1)
                        gp.changeScene(3);
                    break;
                case 5:
                    if (state[0] == 1 && getX() > 400)//上侧出口
                        gp.changeScene(2);
                    else if (state[2] == 1 && getX() < 400) {//下侧出口
                        gp.changeScene(3);
                    }
                    if (state[1] == 1 && getX() > 750) {//右侧铁轨
                        gp.changeScene(6);
                    }
                    break;
                case 6:
                    if (state[3] == 1 && getX() < 400) {
                        gp.changeScene(5);
                    } else if (state[0] == 1 && getY() < 400) {
                        gp.changeScene(7);
                    }
                    if (state[1] == 1 && getX() > 400) {
                        //通关逻辑
                        if (gp.getEnemies().isEmpty())
                            gp.setIsWin(1);
                    }
                    break;
                case 7:
                    if (state[2] == 1)
                        gp.changeScene(6);
                    break;
            }
        }
        return num == 0;
    }

    //射击
    public void shoot() {
        if (getAttack() == 0) {
            System.out.println("攻击力为0 没有子弹");
            return;
        }
        Shot s = new Shot(this.getX() + 10, this.getY() + 10, this.state);
        s.setImg(new Image("file:src/main/java/org/example/image/feibiao.png"));
        s.setWidth(20);
        s.setHeight(20);
        String direction = "0000";
        if (this.getImg().equals(hero1)) {
            direction = "0010";
        } else if (this.getImg().equals(hero2)) {
            direction = "0110";
        } else if (this.getImg().equals(hero3)) {
            direction = "0100";
        } else if (this.getImg().equals(hero4)) {
            direction = "1100";
        } else if (this.getImg().equals(hero5)) {
            direction = "1000";
        } else if (this.getImg().equals(hero6)) {
            direction = "1001";
        } else if (this.getImg().equals(hero7)) {
            direction = "0001";
        } else if (this.getImg().equals(hero8)) {
            direction = "0011";
        }
        for (int i = 0; i < 4; i++) {
            s.state[i] = direction.charAt(i) - 48;
        }
        s.setType(0);
        shots.add(s);
        s.setSpeed(30);
        new Thread(s).start();
    }

    //设置主角不同皮肤
    public void changeSkin(int num) {
        switch (num) {
            case 1:
                hero1 = hero11;
                hero2 = hero12;
                hero3 = hero13;
                hero4 = hero14;
                hero5 = hero15;
                hero6 = hero16;
                hero7 = hero17;
                hero8 = hero18;
                break;
            case 2:
                hero1 = hero21;
                hero2 = hero22;
                hero3 = hero23;
                hero4 = hero24;
                hero5 = hero25;
                hero6 = hero26;
                hero7 = hero27;
                hero8 = hero28;
                break;
            case 3:
                hero1 = hero31;
                hero2 = hero32;
                hero3 = hero33;
                hero4 = hero34;
                hero5 = hero35;
                hero6 = hero36;
                hero7 = hero37;
                hero8 = hero38;
                break;
            case 4:
                hero1 = hero41;
                hero2 = hero42;
                hero3 = hero43;
                hero4 = hero44;
                hero5 = hero45;
                hero6 = hero46;
                hero7 = hero47;
                hero8 = hero48;
                break;
        }
    }

    public Image getImg() {
        return image;
    }

    public Vector<Shot> getShots() {
        return shots;
    }

    public void setShots(Vector<Shot> shots) {
        this.shots = shots;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getName() {
        return this.name;
    }

    private static Image hero11 = new Image("file:src/main/java/org/example/image/hero/hero11.png");
    private static Image hero12 = new Image("file:src/main/java/org/example/image/hero/hero12.png");
    private static Image hero13 = new Image("file:src/main/java/org/example/image/hero/hero13.png");
    //...省略
